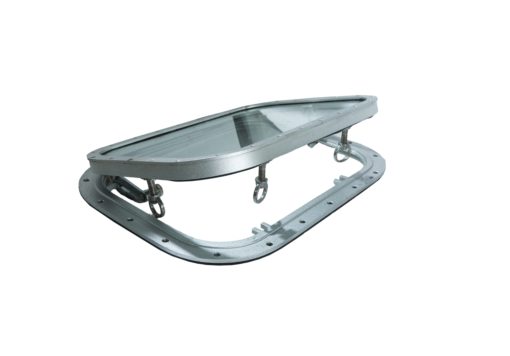

Marine Opening Type Rectangular Window Aluminum Rectangular Ship Window for boat,
with CCS, BV, LR, DNV-GL, RINA, size customize, bolt&weld type
We can customize the Marine Opening Type Rectangular Window as your want.
All frame is aluminum, bolt connecting, easy to connect with your ship hull.
All products will be testing before leaving factory to ensure the watertight capacity.
Sample Drawing Viewing:
Specifications of Marine Opening Rectangular Window:
| TYPE | MOMINAL SIZE | FRAME | SIZE OF OPENING | CLASS THICK | WEIGHT Kg | ||||
| W1 xH1 | W2xH2 | W3xH3 | W4xH4 | r | BH | BN | BH | BN | |
| A | 800×630 | 848×678 | 930 x 760 | 852×682 | 126 | 12 | 15 | 25.5 | 25.9 |
| 800×710 | 848 x758 | 930 x 840 | 852×762 | 12 | 15 | 28.1 | 28.7 | ||
| 900×630 | 948×678 | 1030×760 | 952×682 | 12 | 19 | 28.2 | 30.3 | ||
| 900×710 | 948×758 | 1030 x 840 | 952×762 | 12 | 19 | 30.9 | 32.9 | ||
| 900×800 | 948 x 848 | 1030×930 | 952×852 | 12 | 19 | 33.9 | 36.1 | ||
| 1200×630 | 1248×678 | 1330×760 | 1252×682 | 15 | 20 | 41.6 | 44.0 | ||
| 1200×710 | 1248×758 | 1330×840 | 1252×762 | 15 | 20 | 45.9 | 48.6 | ||
| 1200×800 | 1248×848 | 1330 x 930 | 1252×852 | 15 | 20 | 50.6 | 53.6 | ||
| 1500×710 | 1548 x 758 | 1630 x 840 | 1552 x 762 | 15 | 20 | 56.1 | 59.4 | ||
| 1500×800 | 1548 x 848 | 1630 x 930 | 1552×852 | 15 | 20 | 61.2 | 64.9 | ||
| 1800×710 | 1848 x 758 | 1930 x 840 | 1852×762 | 15 | 20 | 66.3 | 70.3 | ||
| 1800×800 | 1848 x 848 | 1930×930 | 1652×852 | 15 | 20 | 72.4 | 76.8 | ||
| 1800×900 | 1848×948 | 1930×1030 | 1852×952 | 15 | 20 | 77.5 | 82.5 | ||
A lightweight fixed window for ships, including a window base and tempered glass installed inside the window base.
The tempered glass is fixedly install inside the window base,
and the side section of the window sash frame is in an “L” shape near the hull, use to connect the hull.
The other side includes an inverted “L” glass installation position, with an opening below the glass installation position and a glass sealing strip inside the opening,
The end of the glass sealing strip is equipping with an arc-shaped bending part that bends towards the tempered glass,
and the arc-shaped bending part is connecting to the surface of the tempered glass.
