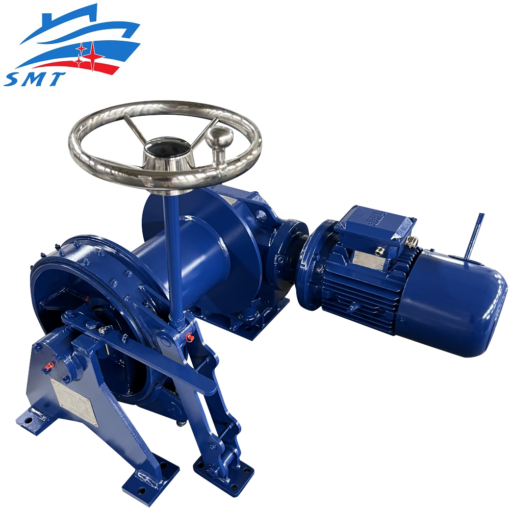

Marine Aluminum Anchor Winch Electric/Hydraulic Hydraulic Anchor Windlass Marine Aluminum Anchor Winch capstan
for 12.5mm~60mm diameter AM-2 anchor chain for boat&vessel&ship
What’s more, We can customize the windlass, design based on the type&Weight of your boat&vessel&ship, to help your vessel work perfectly!!!!
Meanwhile, All Equipment will do testing before leaving factory(FAT).
Our Marine Aluminum Anchor Winch can be customizing like hydraulic type, electric type 220V/380V, 50HZ/60HZ.
And we can deliver the Anchor Winch to all over the world.
Sample Drawing of 28mm hydraulic anchor windlass:
Working Specifications:
| Chain Dia (mm, U2 Chain) |
Rated load(KN) | Overload(KN) | Holding load(KN) | Speed(m/min) | Electric Power-Double Motor(KW) | Hydraulic Power(KW) |
| 12.5 | 6.6 | 9.9 | 42 | ≥9 | 2.4/1.5 | 4 |
| 14 | 8.3 | 12.5 | 52 | ≥9 | 2.4/1.5 | 4 |
| 16 | 10.9 | 16.4 | 67 | ≥9 | 3.3/2/2 | 5.5 |
| 17.5 | 13.0 | 19.5 | 81 | ≥9 | 4.3/1.7 | 5.5 |
| 19 | 15.3 | 23 | 95 | ≥9 | 4.3/1.7 | 5.5 |
| 20.5 | 17.9 | 26.9 | 110 | ≥9 | 4.3/1.7 | 7.5 |
| 22 | 20.6 | 30.9 | 126 | ≥9 | 6/2.5 | 7.5 |
| 24 | 24.5 | 36.8 | 145 | ≥9 | 8.5/3.5 | 11 |
| 26 | 28.7 | 43.1 | 175 | ≥9 | 8.5/3.5 | 11 |
| 28 | 33.3 | 50.0 | 202 | ≥9 | 11/11/7.5 | 15 |
| 30 | 38.3 | 57.5 | 231 | ≥9 | 11/11/7.5 | 15 |
| 32 | 43.5 | 65.3 | 262 | ≥9 | 11/11/7.5 | 15 |
| 34 | 49.1 | 75.7 | 295 | ≥9 | 11/11/7.5 | 18.5 |
| 36 | 55.1 | 82.7 | 329 | ≥9 | 16/16/11 | 18.5 |
| 38 | 61.4 | 92.1 | 365 | ≥9 | 16/16/11 | 22 |
| 40 | 68.0 | 102 | 403 | ≥9 | 16/16/11 | 22 |
| 42 | 75.0 | 112.5 | 442 | ≥9 | 22/22/16 | 30 |
| 44 | 82.3 | 123.5 | 486 | ≥9 | 22/22/16 | 30 |
| 46 | 89.9 | 134.9 | 527 | ≥9 | 22/22/16 | 30 |
| 48 | 97.9 | 146.9 | 572 | ≥9 | 22/22/16 | 30 |
| 50 | 106.3 | 159.5 | 617 | ≥9 | 30/30/22 | 37 |
| 52 | 114.9 | 172.4 | 666 | ≥9 | 30/30/22 | 37 |
| 54 | 123.9 | 185.9 | 718 | ≥9 | 30/30/22 | 37 |
| 56 | 133.3 | 200 | 770 | ≥9 | 30/30/22 | 37 |
| 58 | 143.0 | 214.5 | 815 | ≥9 | 45/45/30 | 55 |
| 60 | 153.0 | 229.5 | 873 | ≥9 | 45/45/30 | 55 |
Marine Aluminum Anchor Winch
Video of fast speed of our windlass:
