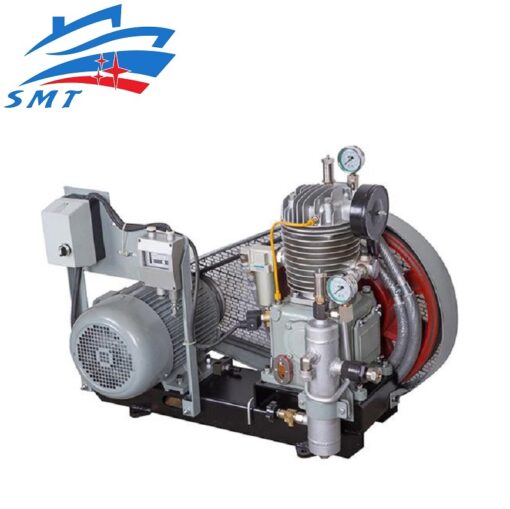

Marine easy to operate low noise air cooling medium pressure piston air compressor

Good Price Low pressure Marine air compressor for ship, can be customized as your requested Pressure and Flow

Marine air compressor in ship based on all pressure and flow

With CCS, BV, LR, RINA, air compressor marine type certificate.

We can deliver cargo to all over the world!

All pressure and displacement&flow(Mpa&Psi) can customize according to your request!

Meanwhile, we will give advice on the installation.To help it connect with your vessel.

Every equipment will be testing before leaving factory to ensure the performance.

What’s more, Every equipment is providing necessary spare parts for repair.

Every equipment is packing by solid wooden case to avoid damage during sea/air transportation.

Several Samples for reference and choosing, if any other request please advise:

Type	Displacement Capacity		Rated Pressure	Speed	Motor Power	Weight
Type	m3/h	m3/min	Mpa	r/min	kw	KG
Double row air cooled piston air compressor	20.4	0.34	3.0	600	5.5	210

Type	Displacement Capacity		Rated Pressure	Speed	Motor Power	Weight
Type	m3/h	m3/min	Mpa	r/min	kw	KG
Double row air cooled piston air compressor	14.5	0.24	3.0	1200	4	160
	18.5	0.308		1500	5.5	180
	22	0.367		1800	5.5	180

Type	Displacement Capacity		Rated Pressure	Speed	Motor Power	Weight
Type	m3/h	m3/min	Mpa	r/min	kw	KG
V-Double row air cooled piston air compressor	30	0.5	3.0	1200	7.5	350-360
	36	0.6		1500	11
	44	0.73		1800	11

5.Water Cooled type

Marine Air Compressor

Type	Displacement Capacity		Rated Pressure	Speed	Motor Power	Weight
Type	m3/h	m3/min	Mpa	r/min	kw	KG
Water cooled piston air compressor	69	1.15	3.0	750	18.5	700
	82	1.36		900	22(440V)
	90	1.5		960	22
	137	2.28		750	37	1400
	170	2.83		900	45(440V)
	190	3.16		960	45

Spare parts together with machine:

Specific Color Customize:

Flow	Customized(like 40m3/h)
Pressure	Customized(Like 1.5MPA, 3MPA…ect)
Package	Standard Wooden Box, easy for forklift to move
Accessories	All necessary accessories like Pressure Adjust Valve, Pistons…etc
Certificate	CCS, BV, LR, DNV…etc
