Chain Guide Roller 316L Stainless Steel Anchor Chain Stopper for Ship
Ship Mooring Anchor Chain Stopper Chain Guide Roller with Certificate.
Customizable size to suit 12.5mm to 40mm anchor chain.
Product Description
Marine Chain Guide Roller & Chain Stopper is used to clamp the anchor chain when the vessel mooring, chain stopper transport the pull strength of anchor and chain to vessel, can withstand the pull of anchor chain so as to protect the anchor windlass not in pull state. Chain Stopper is installed on the deck between windlass and hawsepipe.
Material: Stainless Steel 316L
Finish: anti-rust paint Withstand 80% of Chain Cable’s breaking load
Basic Info.
| Model NO. | SMT-CR | Weight | 10kg |
| Application | Boat, Yacht | Size | 52mm |
| Standard | GB | Transport Package | Fixed Wooden Box |
| Surface Treatment | Polished | Specification | 12.5mm-52mm |
| Material | Stainless Steel 316L | Trademark | Original |
| Type | Chain Stopper Roller | Origin | China |
| Color | Customizing | HS Code | 8483900090 |
| Capacity | Customizing | Production Capacity | 500PCS/Year |
Specification
| Model | Material | weight | AMM) | B(MM) | C(MM) | D(MM) | Chain size |
| SMT-CS | SS316L | 10kg | 290 | 190 | 96 | 52 | AM2 12.5-52mm |

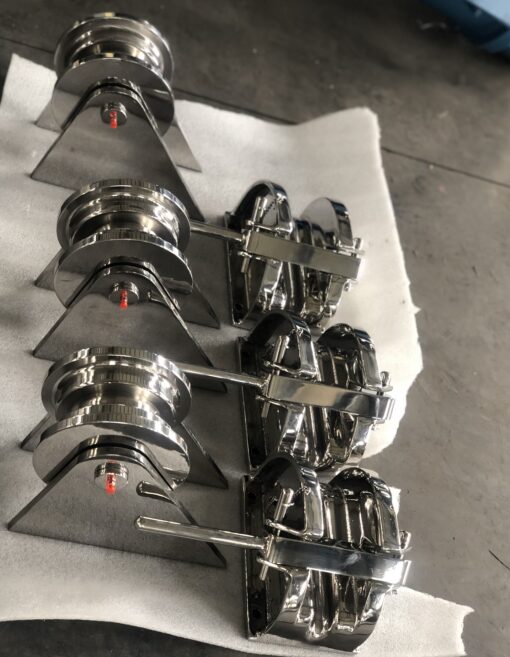

Stainless Steel Anchor Chain Guide Roller.
Customizable size to suit 12.5mm to 40mm anchor chain.
